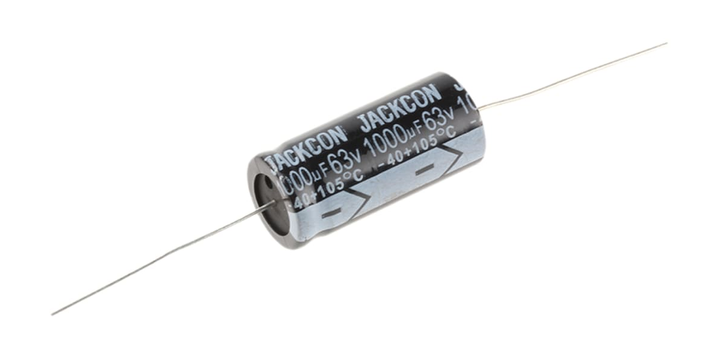

Rs Pro 1701140 1000 Microfarad Aluminium Electrolytic Capacitor 63V Dc, Axial, Through Hole

View Brand

Rs Pro 1701140 1000 Microfarad Aluminium Electrolytic Capacitor 63V Dc, Axial, Through Hole

Brand:	RS Pro
Model:	1701140

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

63 VDC

Mounting Type

Axial, Through Hole

Dimensions

16 (Dia.) x 36 mm

Capacitance

1000 µF

Lifetime

1000h

Ripple Current

1.15 A

Leakage Current

<=0.02 CV or 3 µA @ 5 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

10%

Tolerance

±20%

₱ 35,586.00

(exc. VAT)

₱ 39,856.32

(inc. VAT)

Units	Discount	Unit Price
1	-	₱ 355.86

Quantity:

MOQ of 100 EA

Bundle of 100 EA

Lead time of 7 working days required.

Item will be ready to dispatch within the lead time specified.
