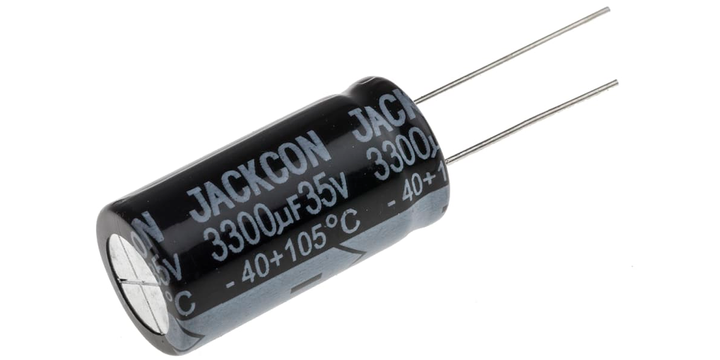

Rs Pro 1701237 3300 Microfarad Aluminium Electrolytic Capacitor 35V Dc, Radial, Through Hole

View Brand

Rs Pro 1701237 3300 Microfarad Aluminium Electrolytic Capacitor 35V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	1701237

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

35 VDC

Mounting Type

Radial, Through Hole

Dimensions

16 (Dia.) x 31 mm

Capacitance

3300 µF

Lead Pitch

7.5 mm

Lifetime

2000h

Ripple Current

1.62 A

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

12%

Tolerance

±20%

₱ 16,018.00

(exc. VAT)

₱ 17,940.16

(inc. VAT)

Units	Discount	Unit Price
1	-	₱ 160.18

Quantity:

MOQ of 100 EA

Bundle of 100 EA

Lead time of 7 working days required.

Item will be ready to dispatch within the lead time specified.
