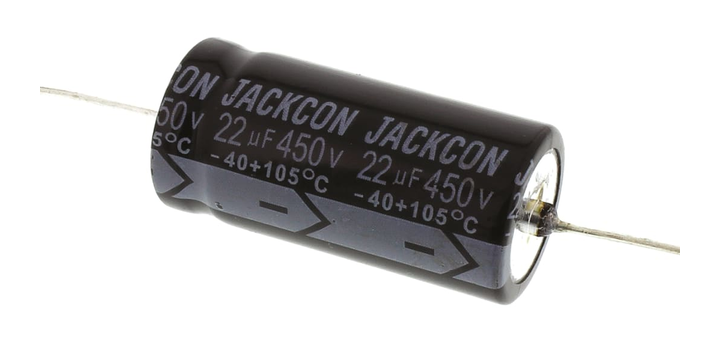

Rs Pro 7076455 22 Microfarad Aluminium Electrolytic Capacitor 450V Dc, Axial, Through Hole

View Brand

Rs Pro 7076455 22 Microfarad Aluminium Electrolytic Capacitor 450V Dc, Axial, Through Hole

Brand:	RS Pro
Model:	7076455

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

450 VDC

Mounting Type

Axial, Through Hole

Dimensions

16 (Dia.) x 33 mm

Capacitance

22 µF

Lifetime

1000h

Ripple Current

91 mA

Leakage Current

<=0.03 CV or 4 µA @ 5 min

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+105°C

Dissipation Factor

20%

Tolerance

±20%

₱ 2,982.18

(exc. VAT)

₱ 3,340.04

(inc. VAT)

Units	Discount	Unit Price
1	-	₱ 1,491.09

Quantity:

MOQ of 2 EA

Bundle of 2 EA

Lead time of 7 working days required.

Item will be ready to dispatch within the lead time specified.

This item is sold by

PH-6705562481
