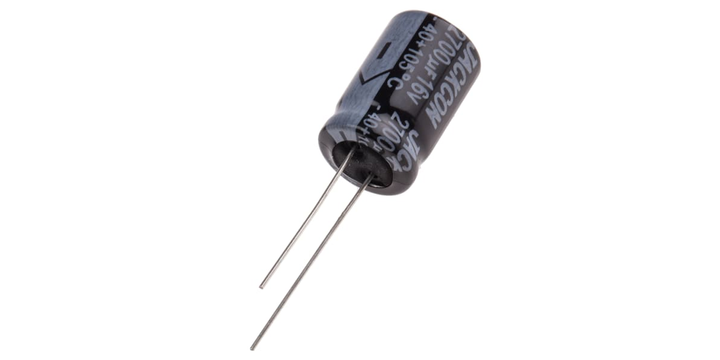

Rs Pro 7111015P 2700 Microfarad Aluminium Electrolytic Capacitor 16V Dc, Radial, Through Hole

View Brand

Rs Pro 7111015P 2700 Microfarad Aluminium Electrolytic Capacitor 16V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	7111015P

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

16 VDC

Mounting Type

Radial, Through Hole

Dimensions

13 (Dia.) x 21 mm

Capacitance

2700 µF

Lead Pitch

5 mm

Lifetime

2000h

Ripple Current

1.1 A

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

16%

Tolerance

±20%

₱ 11,059.00

(exc. VAT)

₱ 12,386.08

(inc. VAT)

Units	Discount	Unit Price
1	-	₱ 110.59

Quantity:

MOQ of 100 EA

Bundle of 10 EA

Lead time of 7 working days required.

Item will be ready to dispatch within the lead time specified.
