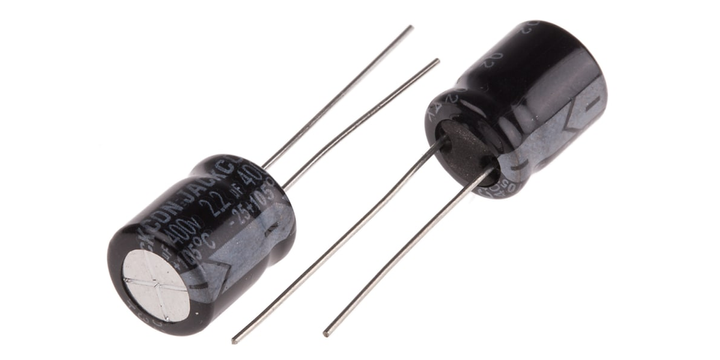

Rs Pro 7112021 2.2 Microfarad Aluminium Electrolytic Capacitor 400V Dc, Radial, Through Hole

View Brand

Rs Pro 7112021 2.2 Microfarad Aluminium Electrolytic Capacitor 400V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	7112021

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

400 VDC

Mounting Type

Radial, Through Hole

Dimensions

10 (Dia.) x 12 mm

Capacitance

2.2 µF

Lead Pitch

5 mm

Lifetime

2000h

Ripple Current

39 mA

Leakage Current

<=0.03 CV or 3 µA @ 1 min

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+105°C

Dissipation Factor

20%

Tolerance

±20%

₱ 2,882.00

(exc. VAT)

₱ 3,227.84

(inc. VAT)

Units	Discount	Unit Price
1	-	₱ 115.28

Quantity:

MOQ of 25 EA

Bundle of 25 EA

Lead time of 7 working days required.

Item will be ready to dispatch within the lead time specified.

This item is sold by

PH-6705562481

Shop by Specification Table

You can find items with similar specifications from the table below.

Aluminium Capacitors

836 Items

Voltage

350 VDC, 6.3 VDC, 200 VDC, 450 VDC, 35 VDC

Dimensions

25 (Dia.) x 44 mm, 22 (Dia.) x 30 mm, 25 (Dia.) x 50 mm, 6 (Dia.) x 11 mm, 18 (Dia.) x 36 mm

Capacitance

6800 µF, 2.2 µF, 470 nF, 6.8 µF, 68 µF

Lead Pitch

2.5 mm, 10 mm, 1.5 mm, 3.5 mm, 5 mm

Lifetime

2000 hours @ 85°C, 1000 hours @ 105°C, 2000h, 1000 h, 1000h

Ripple Current

570 mA, 5 mA, 115 mA, 3.1 A, 355 mA

Leakage Current

3 µA, <=0.01 CV or 3 µA @ 1 min, <=0.02 CV @ 5 min, I <0.03 CV or 3 µA @ 1 min, I <0.02 CV @ 5 min
